Today’s Patent – Continuous Electric Flying Disc Launcher

The said invention (US12128327B1) was invented by Juying Shi and patented by USPTO on May 7^th, 2024. Currently, it stands assigned to the Dongguan Hongyu Plastic Co Ltd.

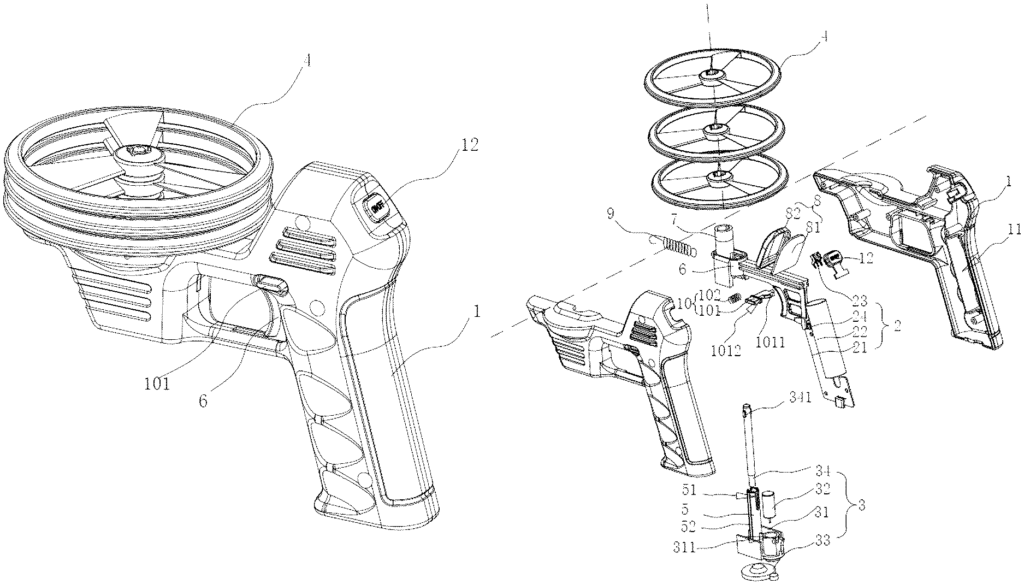

The present application discloses a continuous electric flying disc launcher comprising a housing, power supply module, power assembly, ejector, trigger, limit assembly, and multiple stackable flying disc bodies. The power assembly includes a motor and power output shaft that rotates the topmost disc via interlocking convex blocks, while the limit assembly holds the remaining discs in place. The ejector, guided by a Z-shaped groove and reset by a spring, pushes out the launched disc, allowing the next disc to move into position.

The trigger activates the power supply and controls the ejector’s action. A gear mechanism and compact internal layout optimize space and stability. The launcher also includes a control board, proximity switch, and button for efficient power management, along with an LED light board and lampshade for visual effects during disc flight. Each disc integrates a light bead and kinetic energy circuit that lights up upon motion, enhancing gameplay visibility and enjoyment. This design enables continuous, automated disc launching with improved interactivity and user experience.
