Today’s Patent – Lighting Device with Low Mispress Buttons

The said invention (US12253245B1) was invented by Wenjie Li and patented by USPTO on May 23^rd, 2024. Currently, it stands assigned to an Individual.

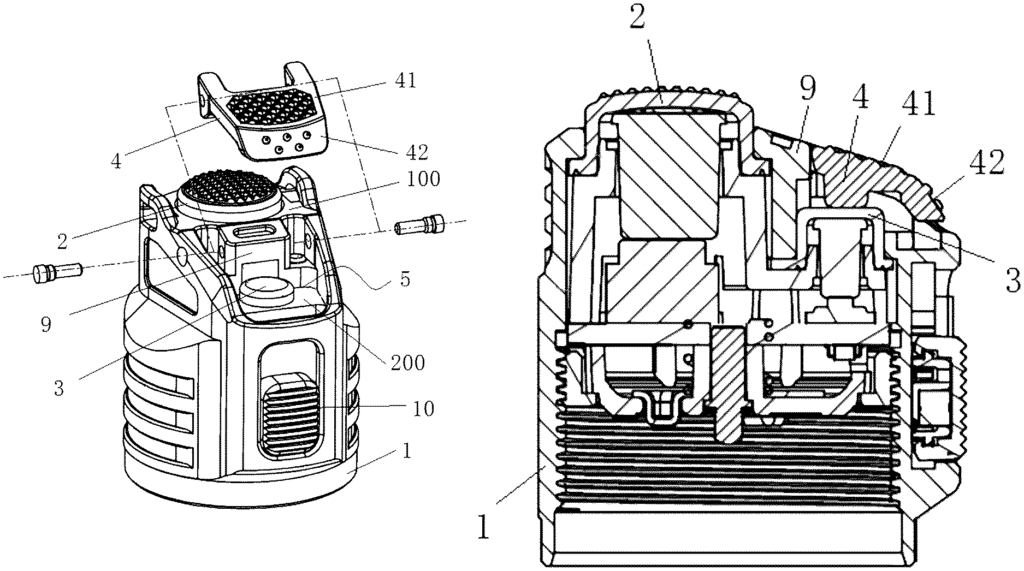

The disclosed lighting device features a dual-button tail design with a mispress-reducing structure, including a first button, a second button, and a rotatable pressing plate that covers the second button. The pressing plate is positioned lower than the first button and includes a first and second inclined surface forming an obtuse angle, designed to guide finger movement away from the second button.

A recessed groove in the tail cover houses the second button, while the first button remains elevated outside the groove. Additional enclosures and anti-slip surfaces further aid in accurate button operation. This design significantly minimizes accidental presses of the secondary button during primary button use, improving user control in tactical or low-visibility conditions.
